A Mechanical Engineer’s Guide to Reliable, Efficient, and Sustainable Cooling Infrastructure
Introduction
As hyperscale, colocation, enterprise, and AI-driven data centers continue increasing rack densities, liquid cooling is rapidly becoming a mission-critical design strategy. Traditional air cooling systems are reaching practical thermal limits, especially in high-density AI and HPC environments where rack loads can exceed 80–150 kW per rack.
Mechanical engineers designing these systems understand the importance of pumps, heat exchangers, piping, valves, controls, and redundancy. However, one foundational element is still frequently underestimated:
Water quality directly impacts cooling system reliability, thermal efficiency, equipment lifespan, and operational risk.
Improper water treatment can lead to:
- Corrosion
- Scale formation
- Biofouling
- Reduced heat transfer efficiency
- Plugged cold plates
- Premature equipment failure
- Increased maintenance costs
- Unplanned downtime
In high-availability environments, even minor degradation in water chemistry can produce substantial operational consequences.
This article outlines best practices for water treatment in data center liquid cooling systems, with special focus on:
- Regional water quality variability
- Source water differences
- Seasonal and weather impacts
- Closed-loop chemistry control
- Materials compatibility
- Filtration and monitoring strategies
- Commissioning and maintenance recommendations
The goal is to help mechanical engineers design liquid cooling systems that are efficient, resilient, scalable, and future-ready.
Why Water Treatment Matters in Liquid Cooling
Liquid cooling systems transfer heat far more effectively than air because water has approximately:
- 3,500x greater volumetric heat capacity than air
- Superior thermal conductivity
- Lower pumping energy requirements for equivalent heat removal
However, water is also chemically active.
Without proper treatment, the same fluid providing thermal efficiency can become the source of corrosion, fouling, and reliability issues.
Key Risks of Poor Water Quality
| Water Quality Issue | Potential Consequences |
| Corrosion | Leaks, metal degradation, reduced component life |
| Scale Formation | Reduced heat transfer efficiency, higher energy use |
| Biofouling | Flow restriction, microbial growth, contamination |
| Particulate Contamination | Plugged microchannels and cold plates |
| Galvanic Reactions | Accelerated corrosion between dissimilar metals |
| Incorrect pH | Material degradation and instability |
| Excess Dissolved Solids | Conductivity increases and deposition risks |
For direct-to-chip cooling systems, where microchannels can be extremely small, even tiny levels of particulate or scale accumulation can significantly reduce performance.

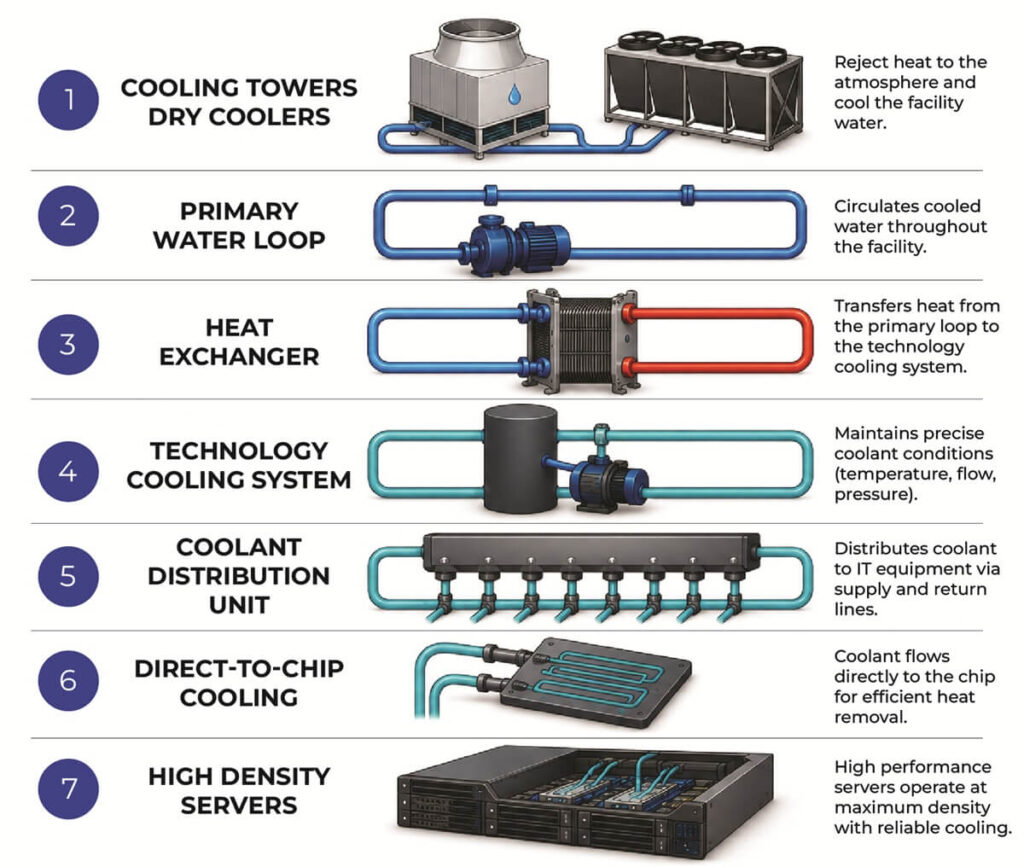

Understanding Data Center Liquid Cooling Architectures
Before discussing treatment strategies, it is important to understand where water quality risks exist within modern cooling architectures.
Common Liquid Cooling Configurations
1. Facility Water Loop (Primary Loop)
Typically connected to:
- Cooling towers
- Dry coolers
- Adiabatic coolers
- Chillers
- Hybrid heat rejection systems
This loop often experiences the greatest exposure to environmental contamination.
2. Technology Cooling System (TCS)
An intermediate closed-loop system separating facility water from IT cooling infrastructure.
Often includes:
- Plate-and-frame heat exchangers
- Secondary pumping systems
- Precision chemistry control
3. Direct-to-Chip Cooling Loop
Highly controlled loop serving:
- Cold plates
- Rear-door heat exchangers
- Immersion cooling interfaces
- CDU systems
This loop generally requires the highest water purity standards.
Water Quality Varies by Geography
One of the most overlooked realities in data center water treatment is this:
Water chemistry differs dramatically by region, climate, geology, and municipal treatment practices.
Mechanical engineers cannot assume a single chemistry strategy will work universally.
Factors Affecting Regional Water Quality
Geological Conditions
Groundwater and municipal supplies inherit mineral characteristics from local geology.
Examples:
| Region | Typical Water Characteristics |
| Southwest U.S. | High hardness, elevated TDS |
| Midwest | Moderate hardness, seasonal variability |
| Pacific Northwest | Softer water, lower mineral content |
| Coastal Areas | Chlorides and salinity concerns |
| Mountain Regions | Lower alkalinity, variable pH |
Municipal Treatment Variability
Utilities may use different disinfectants and treatment processes.
Common variations include:
- Chlorine vs chloramine disinfection
- Corrosion inhibitors
- Fluoride additions
- Seasonal blending of water sources
- Surface water vs groundwater sourcing
Each impacts downstream cooling system chemistry.
Seasonal and Weather Impacts
Weather events can significantly alter incoming water quality.
Seasonal Influences
- Spring runoff may increase turbidity and organics
- Summer drought can increase TDS concentration
- Heavy rainfall may introduce sediment loads
- Freeze/thaw cycles affect alkalinity and conductivity
Climate Change Effects
Increasing weather volatility is making source water less predictable.
Data center operators should anticipate:
- Greater swings in conductivity
- Increased biological loading
- Higher suspended solids
- More aggressive corrosion conditions

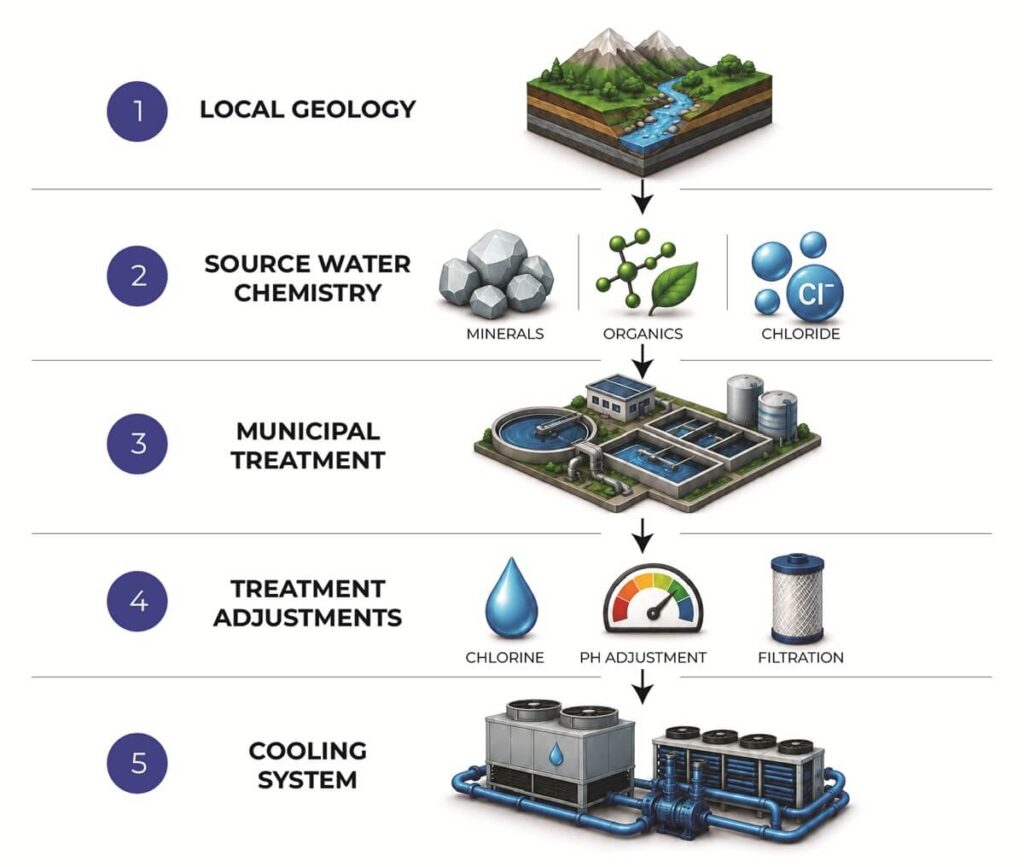

Graphic: Factors Influencing Source Water Quality
Source Water Considerations
Not all water sources are equal.
Municipal Water
Advantages:
- Readily available
- Generally consistent
- Regulated quality
Challenges:
- Chlorides
- Disinfectants
- Seasonal variability
- Utility changes outside operator control
Well Water
Advantages:
- Local control
- Reduced utility dependence
Challenges:
- High hardness
- Iron and manganese
- Variable mineral content
- Biological contamination risks
Surface Water
Advantages:
- Potentially lower cost
Challenges:
- Organics
- Biological loading
- Sediment fluctuations
- Seasonal instability
Reclaimed or Reuse Water
Increasingly used in sustainability-focused data centers.
Advantages:
- Reduced potable water consumption
- Sustainability alignment
Challenges:
- Elevated TDS
- Biological concerns
- Complex treatment requirements
- Additional monitoring needs

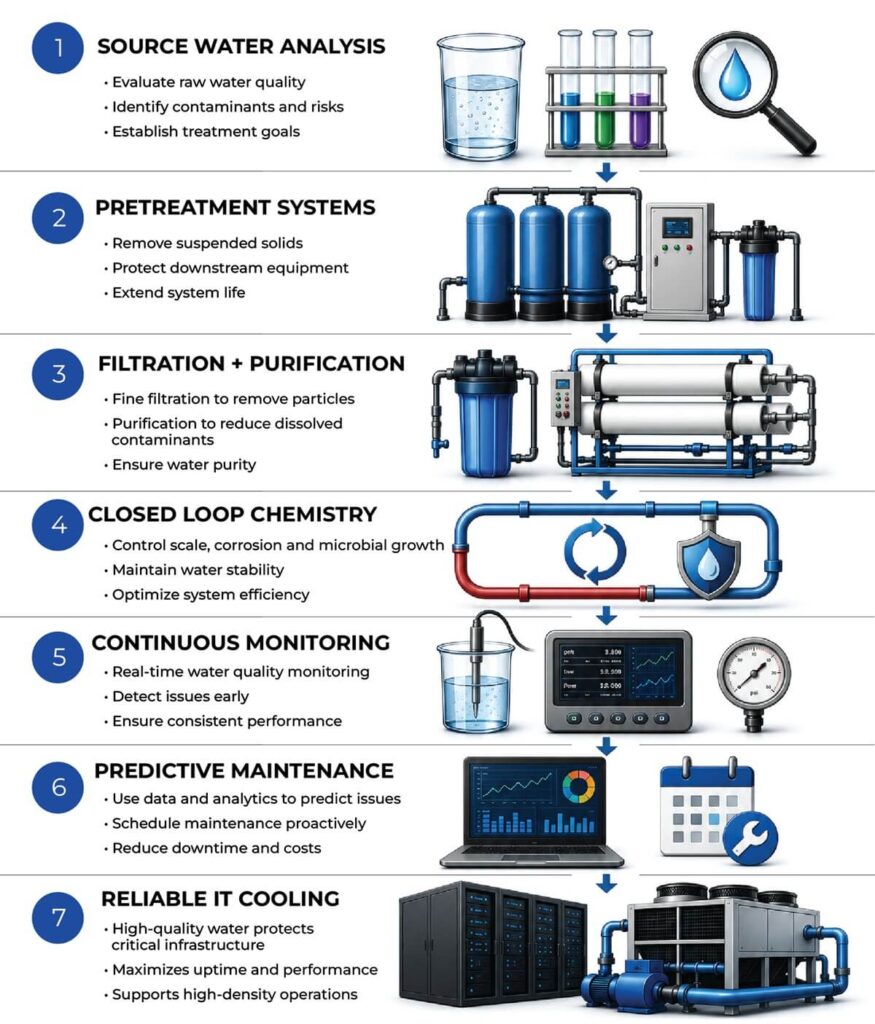

Best Practices for Water Treatment in Data Center Cooling Systems
1. Start with Comprehensive Water Analysis
Every project should begin with a detailed source water characterization.
Recommended testing includes:
| Parameter | Importance |
| pH | Corrosion and material stability |
| Conductivity | Ionic contamination indicator |
| Hardness | Scale potential |
| Chlorides | Corrosion risk |
| Sulfates | Corrosion contribution |
| Silica | Scaling risk |
| Iron/Manganese | Fouling and deposition |
| Total Dissolved Solids (TDS) | Overall water quality |
| Biological Activity | Biofouling risk |
| Alkalinity | pH buffering capacity |
| Dissolved Oxygen | Corrosion driver |
Recommendation
Analyze water chemistry seasonally, not just once during project commissioning.
Annual testing is often insufficient for mission-critical cooling systems.
2. Use High-Purity Makeup Water When Appropriate
Many direct-to-chip systems benefit from high-purity makeup water.
Common approaches include:
- Reverse osmosis (RO)
- Deionization (DI)
- Mixed-bed polishing
- Filtration systems
Important Consideration
Ultra-pure water is not automatically ideal.
Highly purified water can become chemically aggressive if not stabilized correctly.
Mechanical engineers should coordinate closely with water treatment specialists to maintain:
- Controlled conductivity
- Stable pH
- Corrosion inhibitor compatibility
- Material compatibility

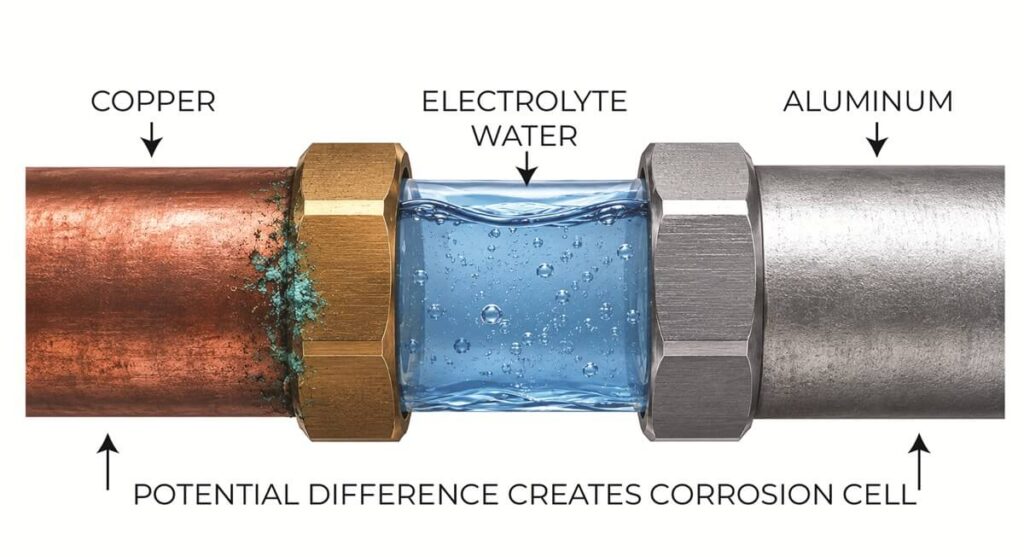

3. Design for Materials Compatibility
Modern liquid cooling systems frequently contain multiple metals, including:
- Copper
- Stainless steel
- Aluminum
- Brass
- Carbon steel
This creates galvanic corrosion risks.
Best Practices
- Minimize mixed-metal exposure
- Use compatible inhibitor chemistry
- Avoid untreated oxygen ingress
- Maintain controlled conductivity
- Verify OEM material requirements
4. Maintain Tight Filtration Standards
High-density liquid cooling systems often use microchannels that are highly sensitive to particulate contamination.
Recommended Filtration Strategies
| System Area | Typical Filtration Recommendation |
| Primary Loop | 50–100 micron |
| Secondary Closed Loop | 5–25 micron |
| Direct-to-Chip Systems | 1–5 micron |
Consider:
- Side-stream filtration
- Magnetic separation
- Automatic self-cleaning filters
- Differential pressure monitoring
Particulate control is essential for protecting:
- Cold plates
- CDU heat exchangers
- Precision valves
- Pump seals
5. Control Biological Growth
Even closed-loop systems can experience microbial growth.
Biofilms reduce heat transfer efficiency and can contribute to under-deposit corrosion.
Risk Factors
- Warm water temperatures
- Stagnation zones
- Intermittent operation
- Organic contamination
Mitigation Strategies
- Proper biocide selection
- UV treatment where appropriate
- Side-stream filtration
- Flow velocity management
- Regular monitoring
6. Continuously Monitor Water Chemistry
Continuous monitoring is becoming standard practice in mission-critical facilities.
Recommended Online Monitoring Parameters
| Parameter | Why It Matters |
| Conductivity | Detects contamination or dilution |
| pH | Corrosion control |
| Temperature | Thermal stability |
| Differential Pressure | Fouling detection |
| Flow Rate | Cooling performance |
| Particle Count | Filtration effectiveness |
| Corrosion Coupons/Sensors | Long-term system health |
Advanced facilities increasingly integrate water chemistry into:
- Building management systems (BMS)
- DCIM platforms
- Predictive maintenance programs
- AI-driven operational analytics
7. Plan for Scalability and Future Densities
AI workloads are increasing thermal densities rapidly.
Cooling systems designed today must remain viable for future rack densities.
Water treatment systems should therefore be designed with:
- Expandable filtration capacity
- Flexible chemistry control
- Additional monitoring ports
- Future heat exchanger upgrades
- Increased flow capability
Direct-to-Chip Cooling Requires Tighter Water Quality Control
Direct-to-chip cooling systems operate with narrower tolerances than traditional HVAC hydronic systems.
Critical Requirements
| Parameter | Typical Target Range |
| Conductivity | OEM-specific low range |
| Particulate Levels | Extremely low |
| Dissolved Oxygen | Minimized |
| Chlorides | Strictly controlled |
| pH | Narrow operating band |
OEM requirements vary significantly.
Mechanical engineers should always coordinate water chemistry specifications with:
- CDU manufacturers
- Cold plate suppliers
- Server OEMs
- Water treatment specialists
Common Water Treatment Mistakes in Data Centers
Mistake #1: Treating Liquid Cooling Like Traditional HVAC Water
High-density liquid cooling systems require much tighter chemistry control than conventional building hydronics.
Mistake #2: Assuming Municipal Water Is Stable
Municipal utilities may change treatment methods seasonally without notice.
Mistake #3: Ignoring Filtration During Commissioning
Construction debris is a major source of early fouling.
Mistake #4: Overlooking Oxygen Ingress
Even small oxygen intrusion can accelerate corrosion.
Mistake #5: Failing to Monitor Continuously
Periodic manual testing alone is insufficient for mission-critical infrastructure.
Commissioning Best Practices
Successful commissioning is critical for long-term reliability.
Recommended Steps
Pre-Operational Cleaning
- System flushing
- Debris removal
- Temporary filtration
- Passivation procedures where required
Water Quality Verification
Confirm:
- Conductivity
- pH
- Inhibitor levels
- Cleanliness standards
- Flow balance
Baseline Documentation
Establish baseline operating data for:
- Pressure drop
- Flow rates
- Chemistry
- Heat transfer performance
- Particle counts
This supports future predictive maintenance.
Sustainability and Water Conservation
Water sustainability is becoming a major data center design consideration.
Mechanical engineers increasingly balance:
- Water usage effectiveness (WUE)
- Energy efficiency
- Cooling reliability
- Environmental impact
Emerging Trends
Water Reuse
- Reclaimed water integration
- Graywater systems
- Blowdown reuse
Hybrid Cooling Systems
- Dry cooler optimization
- Adiabatic assist systems
- Seasonal economization
Advanced Monitoring
AI-driven chemistry optimization can reduce:
- Water consumption
- Chemical usage
- Maintenance frequency
- Energy costs
Water Treatment Strategy for High-Density Data Centers
The Future of Data Center Water Treatment
As AI and high-performance computing continue driving thermal densities upward, water treatment will become even more central to data center reliability.
Future trends include:
- Smarter chemistry automation
- Digital twin monitoring
- AI-assisted predictive maintenance
- Higher purity coolant requirements
- Increased sustainability mandates
- More advanced filtration technologies
- Broader liquid cooling adoption
Mechanical engineers who understand water treatment fundamentals will be better positioned to design next-generation cooling systems that achieve:
- Reliability
- Efficiency
- Scalability
- Sustainability
Conclusion
Water treatment is no longer a secondary consideration in data center cooling design.
It is a core engineering discipline directly affecting:
- System uptime
- Thermal efficiency
- Equipment longevity
- Operational sustainability
- Total cost of ownership
Because water quality varies significantly by region, climate, season, and source, every liquid cooling project requires a customized treatment strategy.
The most successful data center liquid cooling systems combine:
- Detailed water analysis
- Proper filtration
- Continuous monitoring
- Materials compatibility
- Skilled chemistry management
- Proactive maintenance
As rack densities continue rising, mechanical engineers who prioritize water treatment best practices will help ensure the reliability and performance modern data centers demand.
About Vessco Water and Santa Fe Water Systems
Vessco Water and Santa Fe Water Systems provide advanced water treatment solutions for mission-critical facilities, including high-density data centers and liquid cooling applications.
Our expertise includes:
- Cooling water treatment
- Filtration systems
- Side-stream filtration
- Chemical treatment programs
- Water quality monitoring
- System commissioning support
- Corrosion and scale prevention
- Sustainable water management strategies
To learn more, visit:
